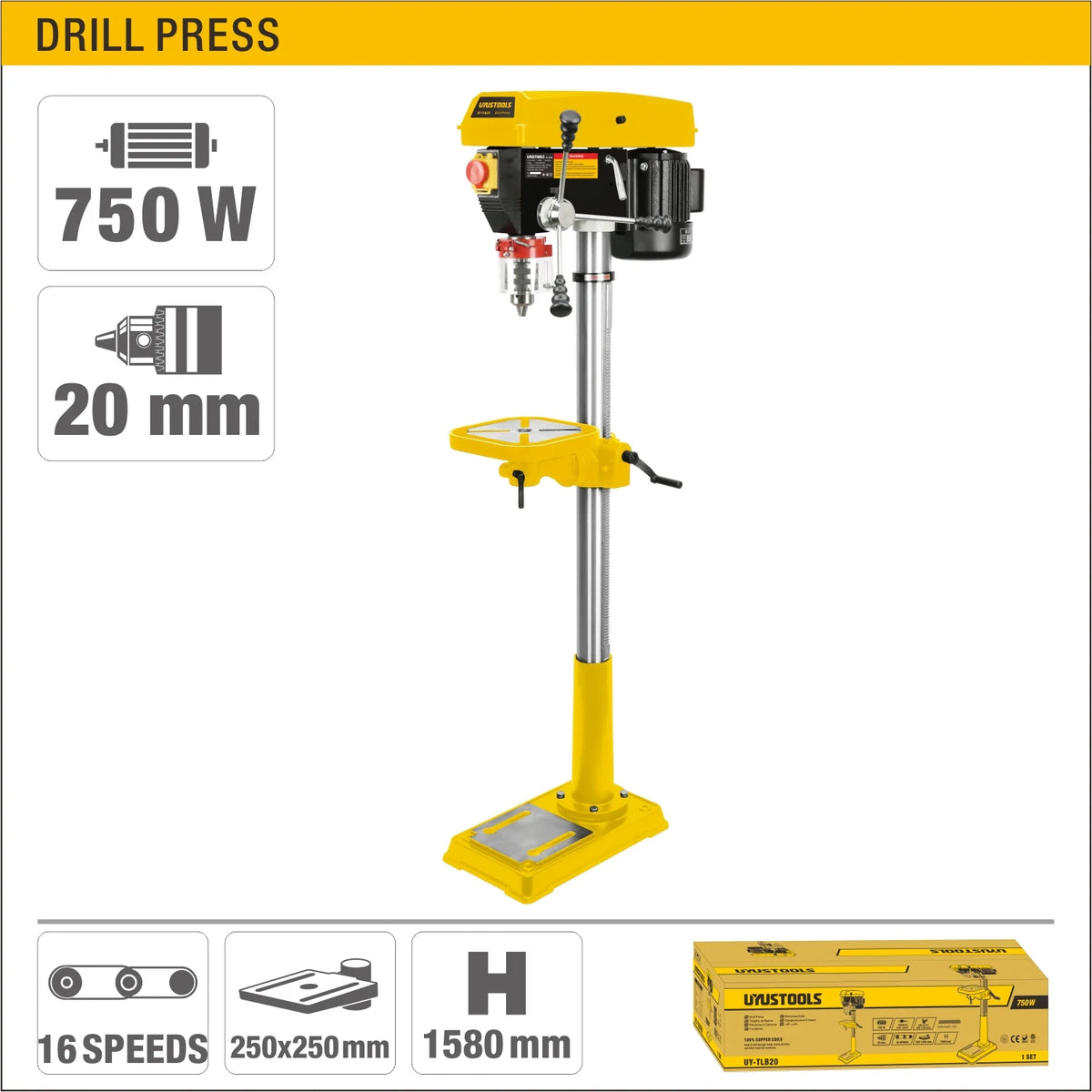

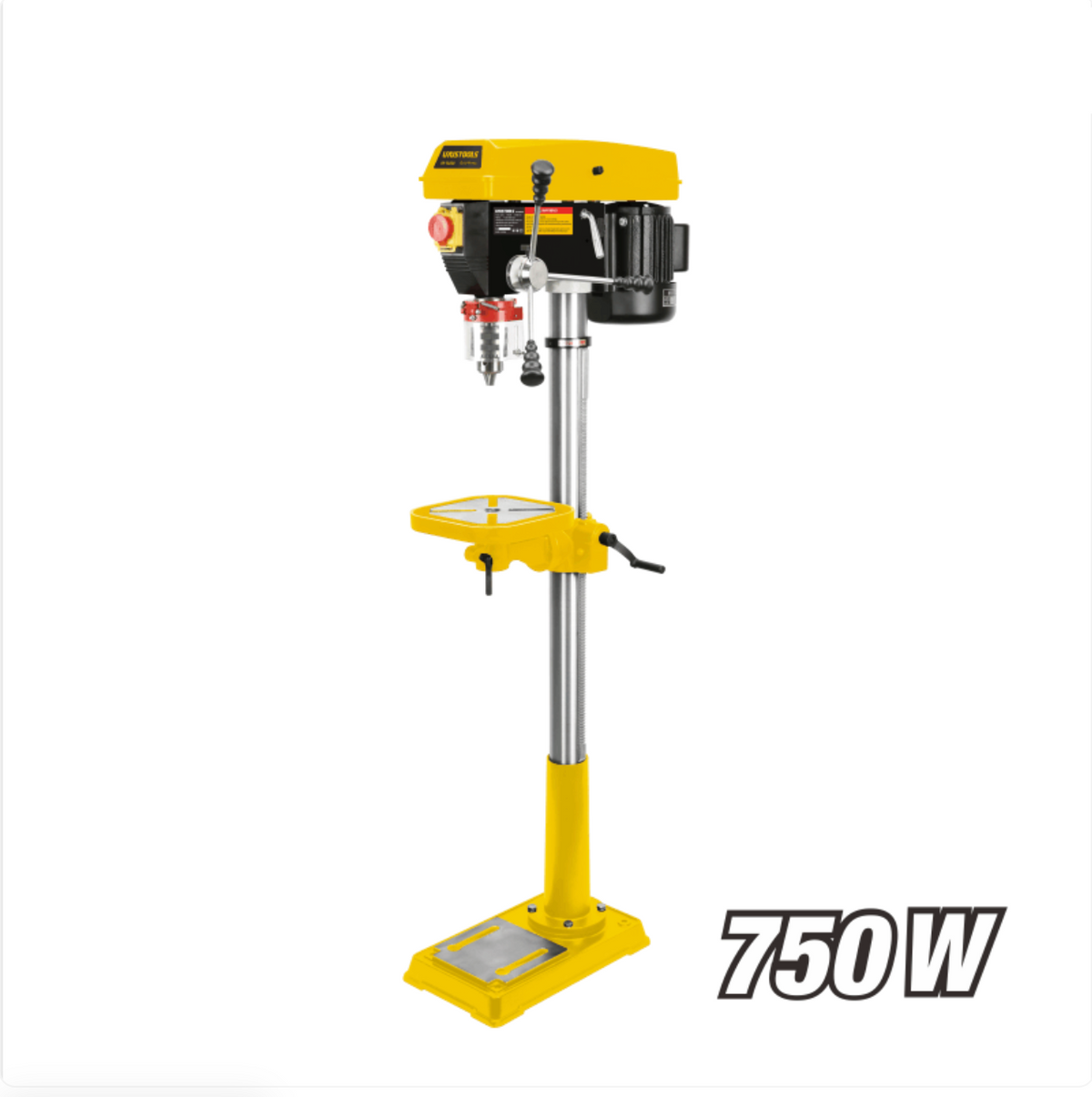

750W Drill Press – 20mm Drilling Capacity, 16-Speed Settings

The 750W Drill Press is a powerful and reliable drilling machine designed for precision drilling in workshops, metalworking, woodworking, fabrication, and general maintenance applications. Equipped with a copper motor and 750W input power, it delivers consistent performance for users who require accurate, controlled, and repeatable drilling results.

Featuring 16 spindle speed settings, this drill press offers excellent versatility when working with different materials and drill bit sizes. Its variable speed range extends from 180 to 2770 RPM at 50Hz and 220 to 3320 RPM at 60Hz, allowing users to select an appropriate speed for their specific drilling requirements.

With a maximum drilling capacity of 20mm and an 80mm spindle stroke, this machine is suitable for a wide range of drilling tasks, from smaller precision holes to larger-diameter applications. The 72mm-diameter column provides structural support, while the 250 x 250mm worktable offers a practical surface for positioning and supporting workpieces during operation.

The drill press features a sturdy 460 x 270mm base designed to provide a stable foundation during drilling. Standing at an overall height of 1580mm, it offers a floor-standing design suitable for professional workshops, garages, and production environments.

Unlike handheld drills, a drill press helps maintain consistent drilling alignment and depth, making it particularly useful for applications where accuracy and repeatability are important. Its adjustable spindle speeds allow operators to adapt the machine to different materials and working conditions.

Whether you are a professional metalworker, carpenter, technician, fabricator, or DIY enthusiast, this 750W drill press provides the power, adjustability, and stability needed for a wide range of drilling operations.

Key Features

• Powerful 750W Motor: Provides reliable power for demanding drilling applications.

• Copper Motor: Designed for dependable electrical performance and efficient operation.

• 20mm Maximum Drilling Capacity: Handles drilling applications up to 20mm, subject to material and tooling requirements.

• 16 Spindle Speed Settings: Offers flexibility for drilling different materials and hole sizes.

• Adjustable Speed Range: Operates from 180–2770 RPM at 50Hz and 220–3320 RPM at 60Hz.

• 80mm Spindle Travel: Provides controlled vertical movement for drilling operations.

• 72mm Column Diameter: Supports the machine's structure and stability.

• 250 x 250mm Worktable: Provides a practical surface for positioning workpieces.

• 460 x 270mm Base: Offers a solid foundation for floor-standing installation.

• 1580mm Overall Height: Designed for workshop use with a floor-standing configuration.

• Precision Drilling: Helps achieve straight, consistent, and repeatable holes compared with handheld drilling.

Technical Specifications

Recommended Applications

• Drilling holes in metal, wood, and other compatible materials

• Workshop fabrication and metalworking

• Furniture production and woodworking

• Repair, installation, and maintenance tasks

• Repetitive drilling where accuracy and alignment are important

• Professional workshops, garages, and DIY projects

Choose this 750W Drill Press for reliable drilling power, 16 adjustable speed settings, and accurate results across a wide range of workshop applications.

Safety note: Secure the workpiece before drilling, select the appropriate spindle speed for the material, and always use suitable eye protection.
